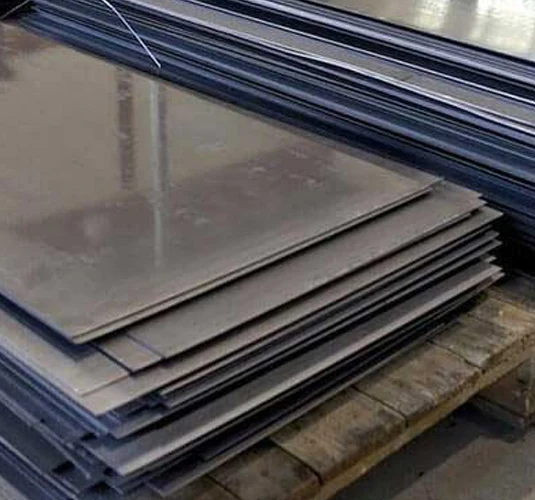

We are Riddhi Siddhi Impex, a Mumbai-based supplier and stockist of Titanium Grade 2 sheets and plates, established in 2002. Our commercially pure titanium (UNS R50400) flat products ship to ASTM B265 / ASME SB-265 in thicknesses from 3.8 mm, widths up to 2000 mm. Our ISO 9001, 14001, and 45001 certified company holds ready stock and exports worldwide with EN 10204 Type 3.1 / 3.2 mill test certificates on request.
Titanium Grade 2 sheet and plate is commercially pure alpha titanium strengthened by oxygen and iron, keeping embrittling impurities low. Oxygen at 0.25% maximum and iron at 0.30% lift its strength above Grade 1, while Titanium Sheets and Plates stay formable and weldable. At 4.51 g/cm³, it is about 43% lighter than steel, and a stable passive oxide film provides excellent resistance in seawater, wet chlorine, and oxidising acids. Fabricators form the material into vessel shells, reactor linings, and other corrosion-resistant components. Titanium Grade 2 finds typical use in chemical processing, marine components, and aerospace parts.
As one of the reputable titanium sheet metal suppliers, we stock Grade 2 titanium sheets and plates in annealed condition, sourced from reputed primary mills to ASTM B265 / ASME SB-265. Sheets run from 3.8 mm upward, with heavier plate gauges on request and widths to 2000 mm. Our slitting lines trim the sheet to width at ±0.1 mm, with EN 10204 Type 3.1 / 3.2 documentation on request for every dispatch.
We provide ASTM B265 Grade 2 titanium sheets and plates in annealed condition, hot rolled or cold rolled, with pickled and mill finishes, and thickness held to ±0.1 mm.
| Parameter | Details |
|---|---|
| Standard | ASTM B265 / ASME SB-265 |
| Aerospace Standard | AMS 4902 |
| Medical Standard | ASTM F67 / ISO 5832-2 |
| Thickness | Sheets: 3.8 mm and above; Plates: heavier gauges on request |
| Width | 3 mm to 2000 mm |
| Width Tolerance | ±0.1 mm |
| Condition | Annealed |
| Surface Finish | Mill finish |
| Form | Hot rolled and Cold rolled |
Oxygen sets this grade apart. Iron, carbon, nitrogen, and hydrogen stay tightly capped.
| Element | Composition (% max unless stated) |
|---|---|
| Carbon (C) | 0.08 max |
| Nitrogen (N) | 0.03 max |
| Hydrogen (H) | 0.015 max |
| Iron (Fe) | 0.30 max |
| Oxygen (O) | 0.25 max |
| Titanium (Ti) | Balance |
Tensile strength anchors the profile. Annealed Grade 2 titanium sheets and plates reach a 345 MPa minimum tensile strength with 20% elongation, so plate rolls and press-forms without cracking.
| Property | Value |
|---|---|
|
Tensile Strength, minimum
|
345 MPa (50 ksi) |
|
Yield Strength (0.2% offset), minimum
|
275-450 MPa (40-65 ksi) |
|
Elongation in 50 mm, minimum
|
20% |
International buyers can match UNS R50400 sheet and plate to their regional standard using the table below.
| Country / Standard | Designation |
|---|---|
| USA (UNS) | R50400 |
| Europe (W.Nr) | 3.7035 |
| Japan (JIS) | TP340C/ TP340H (Class 2) |
| China (GB) | GB/T 3621 TA2 |
| Russia (GOST) | ВТ1-0 (approx.) |
These 5 industries utilise the Titanium Grade 2 sheets and plates we supply. Buyers select the grade for corrosion resistance, low density, or biocompatibility rather than strength.
Chlor-alkali and acid plants build heat exchangers, reactor vessels, and column linings from Grade 2 titanium plate. It resists wet chlorine, hypochlorite, and dilute oxidising acids that pit stainless steel within weeks. Sheet forms the vessel shells; plate is drilled into the tube sheets that keep their wall thickness in service.
Desalination plants and marine hardware take Grade 2 titanium sheet for seawater duty, where the oxide film shrugs off chloride pitting that pits stainless steel, and the erosion-corrosion and sulphide attack that shorten copper-alloy tube life. Flash evaporators and reverse-osmosis units use the plate for chambers and heat-recovery surfaces.
Airframe and engine shops specify Ti Gr 2 sheet against AMS 4902 where mass matters. Fire resistance, temperature capability and corrosion resistance (not raw strength) suit it to ducting, firewalls, and non-structural skins. The grade welds without the cracking risk that alloyed grades carry.
Device makers choose Grade 2 titanium sheet for its biocompatibility and inert oxide surface, meeting ASTM F67 and ISO 5832-2. Surgical trays, implant blanks, and equipment housings press-form from the annealed sheet without leaching or provoking rejection in tissue contact.
Power stations fit Grade 2 titanium plate in surface condensers cooled by seawater or brackish water. It resists the chloride pitting that perforates stainless tube sheets and the dezincification that destroys brass. Support plates and tube sheets cut from the plate align tube bundles under load.
We dispatch Grade 2 titanium sheets and plates from our Mumbai and Taloja warehouses, packed for sea freight.
| Parameter | Details |
|---|---|
| Packaging | Wooden cases, pallet packing |
| Incoterms | FOB, CIF, CFR, EXW Mumbai |
| Dispatch Points | Mumbai and Taloja warehouses |
| Standard Lead Time | 4 to 5 days |
| Urgent Dispatch | 2 to 3 days |
| Payment Terms | Advance, credit, LC |
| Certification | EN 10204 Type 3.1 / 3.2 on request |
The titanium sheets price for Grade 2 ranges from ₹1,000 to ₹1,500 per kg in India and $10 to $16 per kg globally. Rates vary by thickness, width, finish, and volume. Call or WhatsApp Riddhi Siddhi Impex for bulk discounts.
Our sheets and plates run around ₹1,000 to ₹1,500 per kg, or roughly $10 to $16 per kg for export buyers. Contact us for a current quote covering your thickness and quantity.
We supply them to ASTM B265 / ASME SB-265, the primary specification for titanium sheet and plate. AMS 4902 covers aerospace orders, and ASTM F67 with ISO 5832-2 applies to surgical implant material.
We stock sheets from 3.8 mm upward, with heavier plate gauges on request and widths to 2000 mm. Custom widths are slit to ±0.1 mm tolerance. Send us your size requirement for availability.
Grade 2 is commercially pure, with 345 MPa tensile strength, better formability, and easier welding. Grade 5 (Ti-6Al-4V) reaches about 895 MPa but resists forming. Choose Grade 2, where corrosion resistance matters more than load.
Every order ships with EN 10204 Type 3.1 or 3.2 mill test certificates on request, confirming chemistry and mechanical values against ASTM B265.
