Chemical Processing
Chemical plants build reactor liners, columns, and scrubber internals from Alloy C-276 plate. The molybdenum content resists hot sulphuric and hydrochloric acid, and the alloy holds up in mixed-acid and hot caustic streams.

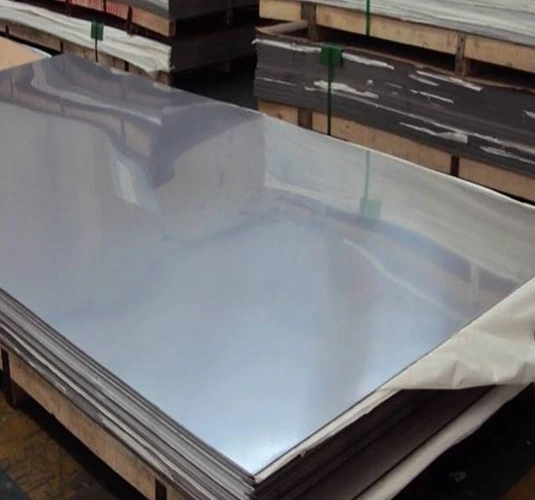

What are Hastelloy C276 Sheets & Plates?
Hastelloy C276 sheets and plates are nickel-molybdenum-chromium alloy flat products with added tungsten, carrying the designation UNS N10276. Molybdenum and tungsten resist pitting and crevice attack in reducing acids, while chromium handles oxidising media. Its very low carbon content limits carbide precipitation during welding, so fabricated joints keep their resistance. It is applied in high-performance industrial applications like chemical processing, pharmaceutical and more.
We stock the grade in cold-rolled Hastelloy C276 sheets from 0.8 mm and hot-rolled plates in heavier gauges, up to 2000 mm wide. Every Alloy C-276 sheet and plate is supplied in the solution-annealed condition per ASTM B575 - cold-rolled sheets in 2B finish and hot-rolled plates in No. 1 (annealed and pickled) finish.
Specifications of Hastelloy C276 Sheets & Plates
We provide ASTM B575 Hastelloy C276 plate and UNS N10276 sheet in the annealed condition, in two finishes and two edge options.
| Parameter | Details |
|---|---|
| Standard | ASTM B575 / ASME SB-575 |
| Thickness (Sheets, CR) | 0.8 mm to 6 mm |
| Thickness (Plates, HR) | 6 mm and above (up to ~10 mm) |
| Condition | Annealed (solution annealed) |
| Surface Finish | 2B (CR), No. 1 (HR) |
| Supply Form | Hot Rolled (HR), Cold Rolled (CR) |
| Edge | Mill edge, Slit edge |
Chemical Composition of Hastelloy C276 Sheets & Plates
Molybdenum defines this grade. UNS N10276 carries 15.0 to 17.0% molybdenum, along with tungsten, to fight pitting in reducing acids and chlorides. The full ASTM B575 composition is below.
| Element | Composition (%) |
|---|---|
| Nickel (Ni) | Balance |
| Molybdenum (Mo) | 15.0 to 17.0 |
| Chromium (Cr) | 14.5 to 16.5 |
| Iron (Fe) | 4.0 to 7.0 |
| Tungsten (W) | 3.0 to 4.5 |
| Cobalt (Co) | 2.50 max |
| Manganese (Mn) | 1.00 max |
| Vanadium (V) | 0.35 max |
| Silicon (Si) | 0.08 max |
| Carbon (C) | 0.010 max |
| Sulphur (S) | 0.030 max |
Mechanical Properties of Hastelloy C276 Sheets & Plates
Annealed Alloy C276 plate meets a 690 MPa minimum, and the high elongation lets it deep-draw and weld without cracking. The values below apply to the annealed condition per ASME SB-575. Sheets and plates carry no hardness range.
| Property | Value (Minimum) |
|---|---|
|
Tensile Strength
|
690 MPa (100 ksi) |
|
Yield Strength (0.2% offset)
|
283 MPa (41 ksi) |
|
Elongation in 50 mm
|
40% |
Equivalent Grades of Hastelloy C276 Sheets & Plates
International buyers can cross-reference the UNS N10276 plate against their regional standard below. W.Nr 2.4819 material from our stock matches each entry.
| Country / Standard | Designation |
|---|---|
| USA (UNS) | N10276 |
| Europe (EN) | NiMo16Cr15W |
| Germany (W.Nr) | 2.4819 |
| Japan | NW 0276 |
| China (GB) | NS3304 |
Industrial Applications of Hastelloy C276 Sheets & Plates
These 5 industries utilise most of the Hastelloy C276 sheets and plates we supply, each drawn to the grade's resistance to both oxidising and reducing corrosion.
Oil and Gas Processing
Oil and gas fabricators specify C276 Hastelloy alloy sheet for sour-service parts and high-chloride refinery equipment. These Hastelloy Sheets and Plates resist chloride cracking and pitting in wet H2S and brine, so it lasts in wellhead hardware.
Pollution Control and Flue Gas Desulphurisation
Flue-gas desulphurisation systems use Hastelloy C276 plates for scrubber vessels, ducts, and stack liners. Wet FGD service mixes acids, chlorides, and heat, which C276 withstands to extend service life.
Pharmaceutical and Food Processing
Pharmaceutical fabricators choose Alloy C276 sheet for reactor vessels, filters, and heat exchangers handling aggressive process chemistry. The grade keeps a clean surface under repeated cleaning and resists the acids used in high-purity synthesis.
Pulp and Paper
Pulp and paper mills fit a Hastelloy C276 plate in bleaching equipment exposed to chlorine and chlorine dioxide. The alloy resists these oxidising bleach liquors, so washer parts avoid pitting.
Shipping & Packaging
Export orders leave from our Mumbai and Taloja warehouses in wooden cases or on pallets, ready for freight.
| Parameter | Details |
|---|---|
| Packaging | Wooden cases, pallet packing |
| Incoterms | FOB, CIF, CFR, EXW Mumbai |
| Dispatch Points | Mumbai and Taloja warehouses |
| Standard Lead Time | 4 to 5 days |
| Urgent Dispatch | 2 to 3 days |
| Payment Terms | Advance, credit, LC |
| Certification | EN 10204 Type 3.1 / 3.2 on request |
Hastelloy C276 Sheets & Plates Price
Hastelloy C276 sheet and plate price in India is around ₹2,090 to ₹4,220 per kg. For international buyers, it is generally $30 to $47 per kg. The figure tracks the global nickel market and its thickness, finish, and quantity. Call or WhatsApp us for today's rate.
Why Choose Riddhi Siddhi Impex?
Fast delivery
Best Quality
Availability of all materials
Frequently Asked Questions
What specification covers Hastelloy C276 Sheets and Plates?
Hastelloy C276 sheets and plates are covered by ASTM B575. These standards set the chemistry, mechanical minimums, and tolerances for UNS N10276.
What thickness range is available for Hastelloy C276 Sheets and Plates?
We stock Hastelloy C276 sheets from 0.8 mm thickness upwards, and plates in heavier gauges up to around 10 mm. Custom thicknesses and widths are available on request.
How does Hastelloy C276 Plate compare to SS 316 Plate in corrosive service?
Hastelloy C276 plate offers far greater resistance than SS 316 in reducing acids, mixed-acid media, and chloride pitting or cracking. SS 316 suits mild corrosive duty, whereas C276 is selected for severe environments where stainless steel fails early.
Can Hastelloy C276 Plates be used for pressure vessel lining?
Yes, C276 plate is widely used as a corrosion-resistant lining, clad or weld-overlaid, on carbon steel pressure vessels. Ideal for use in reactors and columns handling mixed acids, chloride streams and hot caustics.
Where can I source Hastelloy C276 Plates in India?
You can source from a reliable Hastelloy C276 plate supplier like Riddhi Siddhi Impex. We have ready stock in our Mumbai warehouse & dispatch within 4 to 5 days. Call us today and get a quote within 24 hours.
