We are Riddhi Siddhi Impex, a Mumbai-based Duplex 2205 Shims manufacturer and supplier, established in 2002. We slit UNS S32205 shim stock in-house to ASTM A240 / ASME SA-240, from 0.03 mm to 5 mm thick. Our ISO 9001, 14001, and 45001-certified firm holds ready stock, a monthly supply capacity of 400-500 tonnes, and ships with EN 10204 Type 3.1 / 3.2 mill test certificates on request.

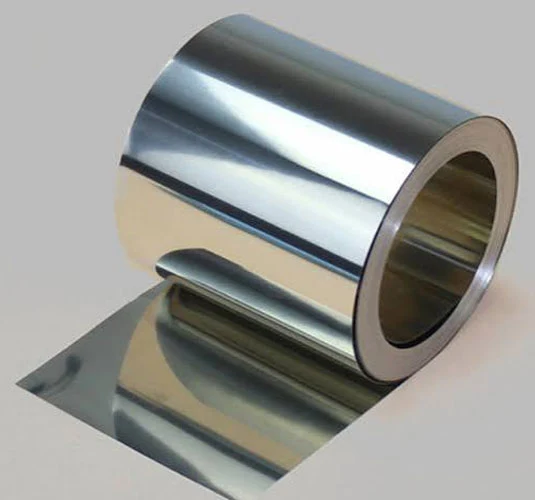

Duplex 2205 shims are precision flat spacers slit from two-phase stainless steel, roughly half austenite and half ferrite. Fitters use them to fill gaps, level machinery, and correct alignment between mating faces. The 22% chromium, 3% molybdenum, and nitrogen chemistry pushes the PREN above 35, so a 2205 shim holds its exact thickness in chloride service that pits 304 or 316 spacers. Yield strength near double the austenitic level allows a thin section to carry clamping load without deforming. These shims are used in marine and desalination plants, oil and gas industries, and more.
We slit DSS 2205 shim in any width from 3 mm to 2000 mm, in soft annealed condition to ASTM A240, with the finish and edge that your assembly needs.
We provide ASTM A240 Duplex 2205 shim stock in annealed condition, with four surface finishes and three edge options.
| Parameter | Details |
|---|---|
| Standard | ASTM A240 / ASME SA-240 |
| Thickness | 0.03 mm to 5 mm |
| Width | 3 mm to 2000 mm |
| Width Tolerance | ±0.1 mm |
| Condition | Annealed (Soft) |
| Surface Finish | BA (Bright Annealed), 2B, Matte, Matte PVC |
| Supply Forms | Cold Rolled |
| Edge | Slit edge, Deburred edge, Round edge |
Chromium at 22.0 to 23.0% forms the main element of Duplex UNS S32205 shims, while the 0.14 to 0.20% nitrogen window separates the grade from the older S31803 range. ASTM A240 limits follow.
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.030 max |
| Manganese (Mn) | 2.00 max |
| Phosphorus (P) | 0.030 max |
| Sulphur (S) | 0.020 max |
| Silicon (Si) | 1.00 max |
| Chromium (Cr) | 22.0 to 23.0 |
| Nickel (Ni) | 4.5 to 6.5 |
| Molybdenum (Mo) | 3.0 to 3.5 |
| Nitrogen (N) | 0.14 to 0.20 |
Alloy 2205 shims to ASTM A240 carry a 655 MPa minimum tensile strength paired with a 450 MPa minimum yield. Yield and elongation minimums apply from 0.50 mm up; values for thinner shim gauges stay indicative. Material ships annealed only, with no temper ladder, and we don't recommend continuous duty above 300 °C, where alpha-prime embrittlement begins.
| Property | Value |
|---|---|
|
Tensile Strength, minimum
|
655 MPa (95 ksi) |
|
Yield Strength (0.2% offset), minimum
|
450 MPa (65 ksi) |
|
Elongation in 50 mm, minimum
|
25% |
|
Hardness, maximum
|
293 HBW / 31 HRC |
Buyers ordering 1.4462 shims against a national system can match our stock below. Every designation shown covers the same tight S32205 window.
| Country / Standard | Designation |
|---|---|
| USA (UNS) | S32205 |
| Europe (EN) | X2CrNiMoN22-5-3 |
| Germany (W.Nr) | 1.4462 |
| Japan (JIS) | SUS329J3L |
| China (GB) | 022Cr22Ni5Mo3N |
These 4 industries use the Duplex Steel 2205 shims we slit. Buyers pick the grade wherever a spacer must hold precise thickness under chloride attack, mechanical load, or both.
Offshore and sour-service assemblies rely on 2205 duplex shims to set clearances in valves, wellhead hardware, and instrument mounts. The grade resists pitting and crevice attack in seawater while carrying real clamping force. Slit to ±0.1 mm, each shim installs without on-site trimming.
Chemical plants set pump bases, reactor flange gaps, and seal faces with 22Cr duplex shims. Warm chloride streams crack austenitic spacers in a single campaign; the duplex structure keeps its gauge through years of the same duty.
Seawater defines this application. Desalination contractors align pump housings, flash chamber internals, and heat recovery hardware with Alloy 2205 shims, where the nitrogen chemistry keeps pitting in check through hot, high-chloride brine exposure.
Chlorine dioxide bleaching keeps pulp mill hardware under constant chloride attack. Shims that align washer drums, agitator mounts, and drive assemblies take the duplex grade for the pitting resistance and stiffness this line of work demands.
Export orders leave Mumbai and Taloja, packed in wooden cases or on pallets, ready for sea freight.
| Parameter | Details |
|---|---|
| Packaging | Wooden cases, pallet packing |
| Incoterms | FOB, CIF, CFR, EXW Mumbai |
| Dispatch Points | Mumbai and Taloja warehouses |
| Standard Lead Time | 4 to 5 days |
| Urgent Dispatch | 2 to 3 days |
| Payment Terms | Advance, credit, LC |
| Certification | EN 10204 Type 3.1 / 3.2 on request |
Duplex Stainless Steel 2205 Shims price range in India is around ₹300-₹350 per kg. Export buyers generally pay $7.27 to $10.88 per kg. The figure tracks global nickel and molybdenum rates, and thickness, width, finish, and quantity all move it. Volume discounts apply to bulk orders, so call or WhatsApp us for today's rate.
We slit Duplex 2205 shims from 0.03 mm to 5 mm thick and to any width between 3 mm and 2000 mm, held to ±0.1 mm on width. Anything below 0.03 mm moves into our foil range.
Yes, Duplex 2205 shims can be custom-slit to any width from 3 mm to 2000 mm. Our lines hold ±0.1 mm, so the shim arrives sized for your assembly without secondary trimming.
The difference between UNS S32205 and UNS S31803 depends on the composition. S32205 has higher minimums for chromium, molybdenum and nitrogen, increasing the minimum tensile strength to 655 MPa compared to 620 MPa for S31803. Our shims meet the tighter S32205 window.
The surface finishes available on Duplex 2205 shims are BA (Bright Annealed), 2B, Matte, and Matte PVC. Deburred and rounded edges protect gasket faces and seals during installation.
You can source Duplex 2205 shims in India from us at Riddhi Siddhi Impex. Our Mumbai warehouse holds S32205 shim stock ready for dispatch. As a 2205 Duplex steel Shims supplier, manufacturer, and exporter, we serve buyers across India and overseas. Phone or WhatsApp us and we will provide a quote within 24 hours.
