We at Riddhi Siddhi Impex, a Mumbai-based manufacturer and supplier of Stainless Steel 316L Foils, were established in 2002. We slit ASTM A240 / ASME SA-240 Type 316L foil from 0.03 mm to 0.08 mm thick. Our ISO 9001, 14001, and 45001 certifications back every order, with EN 10204 Type 3.1 / 3.2 certificates. Our inventory can hold up to 1000 tonnes annually, and we have ready stock for fast dispatch.

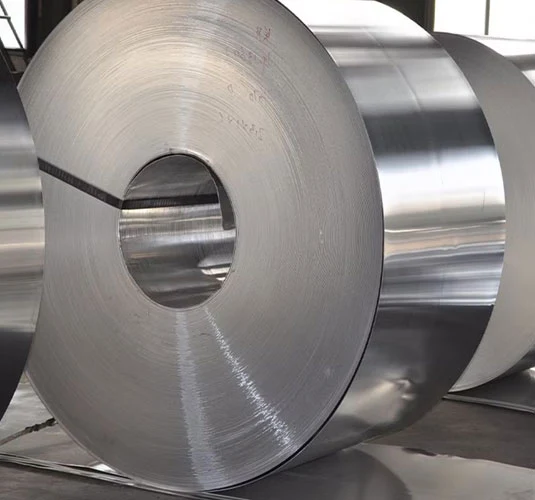

Stainless Steel 316L foils are thin, flat-rolled sections of low-carbon austenitic chromium-nickel-molybdenum steel. The grade carries 16.0-18.0% chromium and 10.0-14.0% nickel. Its 2.00-3.00% molybdenum blocks the pitting that attacks plain chromium-nickel grades in chloride service. Carbon capped at 0.030% keeps welded foil free of sensitisation, so no post-weld anneal is needed. For gaskets, diaphragms, liners, bellows, designers usually pick these stainless steel foils wherever formability and chemical resistance have to coexist in a thin section.
At our Mumbai warehouse, we process every coil we sell. Material leaves in annealed (soft) condition with BA, 2B, Matte, Matte PVC, or CR surfaces and a choice of four edge types. We have a supply capacity of 400-500 tons monthly, and trace each order from source coil to delivery.
We provide SS 316L foil to ASTM A240 / ASME SA-240 in annealed condition, five surface finishes, and four edge options, supplied as coil on mandrel.
| Parameter | Details |
|---|---|
| Standard | ASTM A240 / ASME SA-240 |
| Grade | 316L (UNS S31603) |
| Thickness | 0.03 mm to 0.08 mm |
| Width | 3 mm to 2000 mm |
| Width Tolerance | ±0.1 mm |
| Inner Diameter | 150 mm to 610 mm |
| Outer Diameter | Up to 1800 mm |
| Condition | Annealed (Soft) |
| Surface Finish | BA (Bright Annealed), 2B, Matte, Matte PVC, CR (Cold Rolled) |
| Edge | Slit edge, Mill edge, Deburred edge, Round edge |
Molybdenum defines this grade. At 2.00-3.00%, it resists pitting and crevice corrosion resistance well past 304, while the 0.030% carbon ceiling protects welded SUS 316L stainless steel foil from intergranular attack.
| Element | Composition (% by weight) |
|---|---|
| Carbon (C) | 0.030 max |
| Manganese (Mn) | 2.00 max |
| Phosphorus (P) | 0.045 max |
| Sulphur (S) | 0.030 max |
| Silicon (Si) | 0.75 max |
| Chromium (Cr) | 16.0-18.0 |
| Nickel (Ni) | 10.0-14.0 |
| Molybdenum (Mo) | 2.00-3.00 |
| Nitrogen (N) | 0.10 max |
| Iron (Fe) | Balance |
Annealed ASTM A240 316L foil pairs have a minimum tensile strength of 485 MPa with 40% elongation. We supply the soft condition only; below 0.5 mm gauge, elongation values stay indicative.
| Property | Value |
|---|---|
|
Tensile Strength, minimum
|
485 MPa (70 ksi) |
|
Yield Strength (0.2% offset), minimum
|
170 MPa (25 ksi) |
|
Elongation in 50 mm, minimum
|
40% |
|
Hardness, maximum
|
95 HRB (217 HBW) |
Overseas buyers can match AISI 316L foil, 1.4404 foil, or SUS 316L foil against their national designation here.
| Country / Standard | Designation |
|---|---|
| USA (UNS) | S31603 |
| Europe (EN) | X2CrNiMo17-12-2 |
| Germany (W.Nr) | 1.4404 |
| Japan (JIS) | SUS 316L |
| China (GB) | 022Cr17Ni12Mo2 |
| UK (BS) | 316S11 |
| France (AFNOR) | Z2CND17-12 |
These 4 industries usually specify our 316L stainless steel foil. Each one buys the grade for a different reason: hygiene, washdown chemistry, aggressive process media, or salt exposure.
Pharmaceutical equipment liners, diaphragms, and device components rely on SS 316L foil because its low carbon keeps welds clean of chromium carbide precipitation. Surfaces survive repeated sterilisation without staining. Medical device makers also value the grade's long biocompatibility record and order BA finish coil slit to narrow widths for instrument work.
Food plants choose stainless steel AISI 316L foil for contact surfaces because their cleaning regimes rely on chloride-bearing chemicals. Hot caustic and acid washdowns won't strip the passive layer. Dairies and breweries take our precision-slit foil for hygienic seals, tank liners, and conveyor parts.
Bellows, gasket cores, heat exchanger liners, and column packing in chemical plants start as UNS S31603 foil. Molybdenum in the matrix holds off pitting in chloride and acidic process streams. Where service stays mild and chloride-free, our stainless steel 304 foils do the same job at a lower cost.
Marine Grade 316L foil is used in saltwater applications. Shipyards and offshore fabricators specify it for instrument shims, sealing foils, and cladding tape because it resists pitting in spray zones where leaner grades fail early. We slit coastal-project orders to exact width and pack them for sea freight.
As an SS 316L foil exporter, we pack domestic and overseas orders at our Mumbai and Taloja warehouses.
| Parameter | Details |
|---|---|
| Packaging | Wooden cases, pallet packing |
| Incoterms | FOB, CIF, CFR, EXW |
| Dispatch Points | Mumbai and Taloja warehouses |
| Port | Mumbai |
| Standard Lead Time | 4 to 5 days |
| Urgent Dispatch | 2 to 3 days |
| Payment Terms | Advance, credit, LC |
| Certification | EN 10204 Type 3.1 / 3.2 on request |
Stainless Steel 316L Foils price in India currently is between ₹290 and ₹360 per kg, roughly $3.1 to $3.8 per kg for export enquiries at present exchange rates. Molybdenum surcharges move the figure month to month, and thin gauges carry a premium. Send us your size for today's rate.
We stock SS 316L foil in thicknesses from 0.03 mm to 0.08 mm, slit to any width between 3 mm and 2000 mm. Thicker requirements move into our stainless steel 316L coils range.
The difference between SS 316 foil and SS 316L foil is carbon: 316L caps it at 0.030% against 0.08% for 316. Lower carbon prevents carbide precipitation during welding, so 316L foil keeps its intergranular corrosion resistance in welded assemblies.
Yes, 316L SS foil can be slit to any custom width between 3 mm and 2000 mm on our own lines. Width tolerance holds at ±0.1 mm across the full range.
ASTM A240 / ASME SA-240 covers 316L stainless steel foil as a flat-rolled product, with general requirements under ASTM A480. Every dispatch carries a mill test certificate recording chemistry and mechanical values against the standard.
You can buy Stainless Steel 316L Foils in India directly from us at Riddhi Siddhi Impex. Ready stock in Mumbai ships within 4 to 5 days, urgent orders within 2 to 3 days, and we'll quote within 24 hours by phone or WhatsApp.
