We are Riddhi Siddhi Impex, a Mumbai-based supplier and stockist of Inconel 602 Coils, established in 2002. Our Alloy 602 CA coil stock meets ASTM B168/ASME SB-168 standards, with gauges ranging from 0.03 to 5 mm and slit widths of 3 to 2000 mm with ±0.1 mm tolerance. Our ISO 9001, 14001, and 45001-certified company holds a 400-500-tonne monthly supply capacity. EN 10204 Type 3.1 / 3.2 certificates on request.

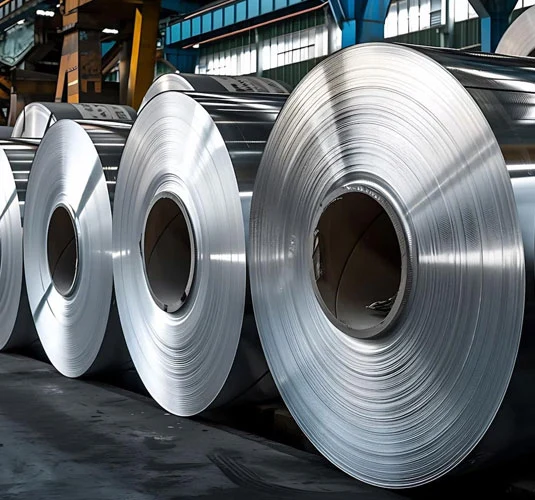

Inconel 602 coils are wound lengths of flat-rolled 602 CA, a high-carbon nickel-chromium-iron alloy built for extreme heat. An aluminium scale which sustains cyclic service near 1200°C is produced by chromium of 24 to 26% combined with 1.8 to 2.4% aluminium. A small yttrium addition keeps that scale anchored. Density is 7.93 g/cm³, and resistance to carburisation and metal dusting completes the grade. Inconel 602 coils are typically used in furnace muffles, thermal processing equipment, chemical processing, and exhaust systems.
We stock these coils rather than roll them, sourcing Inconel coils from established primary mills. Our slitting lines cut any width from 3 mm to 2000 mm, and material leaves solution-annealed to ASTM B168 with a mill test certificate on every order upon request, in the finish and edge you specify.
We provide ASTM B168 Inconel 602 Coils in solution-annealed condition, two surface finishes, and four edge options, slit to width from ready stock in hot rolled and cold rolled forms.
| Parameter | Details |
|---|---|
| Standard | ASTM B168 / ASME SB-168 |
| Thickness | 0.03 mm to 5 mm |
| Width | 3 mm to 2000 mm |
| Width Tolerance | ±0.1 mm |
| Coil ID | 150 mm to 610 mm |
| Coil OD | Up to 1800 mm |
| Condition | Solution-annealed (standard mill) |
| Surface Finish | BA (Bright Annealed), 2B |
| Edge | Slit edge, Mill edge, Deburred edge, Round edge |
| Supply Form | Hot Rolled and Cold Rolled |
UNS N06025 coils hold 0.15 to 0.25% carbon, which contributes to the carbide strengthening responsible for the grade's excellent creep resistance, while chromium and aluminium handle oxidation.
| Element | Composition (%) |
|---|---|
| Chromium (Cr) | 24.0 to 26.0 |
| Nickel (Ni) | Balance |
| Iron (Fe) | 8.0 to 11.0 |
| Carbon (C) | 0.15 to 0.25 |
| Aluminium (Al) | 1.8 to 2.4 |
| Titanium (Ti) | 0.10 to 0.20 |
| Yttrium (Y) | 0.05 to 0.12 |
| Zirconium (Zr) | 0.01 to 0.10 |
| Silicon (Si) | 0.50 max |
| Manganese (Mn) | 0.50 max |
| Copper (Cu) | 0.10 max |
Solution-annealed Alloy 602 coils meet a 675 MPa minimum tensile strength with 30% elongation, so they slit and press cleanly before hardening in service. Yield minimums apply from 0.508 mm up; thinner gauges stay indicative.
| Property | Value (Annealed) (Typical) |
|---|---|
|
Tensile Strength, minimum
|
675 MPa (98 ksi) |
|
Yield Strength (0.2% offset), minimum
|
270 MPa (39 ksi) |
|
Elongation in 50 mm, minimum
|
30% |
Buyers ordering against European paperwork can match W.Nr 2.4633 coils to the designations below. Every entry names the same alloy we hold in stock as UNS N06025 coils.
| Country / Standard | Designation |
|---|---|
| USA (UNS) | N06025 |
| Europe (EN) | NiCr25FeAlY |
| Germany (W.Nr) | 2.4633 |
| Japan (JIS) | NCF602 |
| China (GB) | NiCr25FeAlY |
| Russia / CIS (GOST) | НКЖ602 |
These 3 industries consume most of the Inconel 602 CA coils we supply. Each picks the grade for oxidation life above 1000°C, where low-cost heat-resistant alloys scale away.
Furnace fabricators roll our IN602 coil stock into muffles, radiant tube shells, and retort sections. Because the alumina scale doesn't spall under repeated heating and cooling, wall sections keep their thickness near 1200 °C. Slit-to-width coil feeds forming lines directly and cuts scrap on long production runs.
Hardening shops build baskets, trays, belt links, and quench fixtures from Alloy 602 CA coils. Carrier hardware faces carburising atmospheres that load stainless fixtures with carbon until they crack. The 602 CA grade resists that pickup and keeps its creep strength through years of cycling above 1000 °C.
Process plants specify Inconel 602 coils for reformer internals, catalyst support grids, and strip-formed parts in ammonia, methanol, and hydrogen service. Metal dusting is the main threat in these syngas streams. High chromium and aluminium levels block it, so components outlast conventional heat-resistant grades several times over.
As an Inconel 602 coils exporter, we pack in wooden cases or on pallets and dispatch globally to most of the countries from Mumbai.
| Parameter | Details |
|---|---|
| Packaging | Wooden cases, pallet packing |
| Incoterms | FOB, CIF, CFR, EXW Mumbai |
| Dispatch Points | Mumbai and Taloja warehouses |
| Standard Lead Time | 4 to 5 days |
| Urgent Dispatch | 2 to 3 days |
| Payment Terms | Advance, credit, LC |
| Certification | EN 10204 Type 3.1 / 3.2 on request |
Inconel 602 Coils price in India runs around ₹3,600 to ₹5,400 per kg, roughly $38 to $57 for export buyers. The price per kg follows the global nickel market, and thickness, width, finish, and order volume all shift it. Wholesale buyers earn volume discounts; call or WhatsApp us for today's rate.
We supply Inconel 602 CA coils from 0.03 mm to 5 mm thick and in any width between 3 mm and 2000 mm, custom slit to ±0.1 mm.
Inconel 602 CA coils contain 24.0 to 26.0% chromium, 8.0 to 11.0% iron, 1.8 to 2.4% aluminium, 0.15 to 0.25% carbon, and 0.05 to 0.12% yttrium, with nickel as the balance.
Alloy 602 coils are available in BA (Bright Annealed) and 2B finishes, with slit, mill, deburred, or round edges to order.
Ordering Inconel 602 coils from a stockist like us takes 4 to 5 working days for standard dispatch, including custom slitting. Urgent requirements ship in 2 to 3 days from ready IN602CA coil inventory.
Inconel 602 CA coils offer a 675 MPa minimum tensile strength, 270 MPa minimum yield strength, and 30% minimum elongation in the solution-annealed condition per ASTM B168.
You can source Inconel 602 Coils in India from us at Riddhi Siddhi Impex. Our Mumbai warehouse keeps Alloy 602 CA coils on the shelf for immediate dispatch. As a supplier, stockist, dealer, and distributor, we serve buyers across India and export overseas. Call or WhatsApp us; quotes will be provided within 24 hours.
