We are Riddhi Siddhi Impex, a Mumbai-based Inconel 602 Strips manufacturer and supplier, established in 2002. As an ISO 9001, 14001, and 45001 certified company, we slit high-carbon Alloy 602 CA strips to ASTM B168 / ASME SB-168 in thicknesses from 0.03 mm to 5 mm. We maintain a ready stock, with a supply capacity of 400 to 500 tons monthly, and export to 60+ countries. EN 10204 Type 3.1 / 3.2 certification is also issued on request.

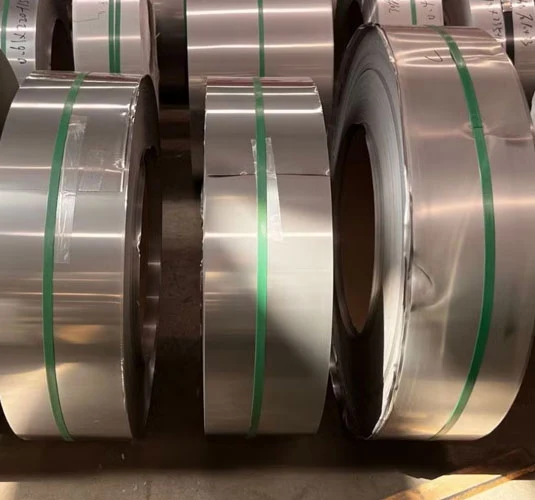

Inconel 602 strips are flat-rolled lengths of UNS N06025, a nickel-chromium-iron alloy carrying 24.0 to 26.0% chromium and a deliberately high 0.15 to 0.25% carbon. Aluminium at 1.8 to 2.4% grows a tight alumina scale on the surface. Small yttrium and zirconium additions keep that scale bonded through thermal cycling, which is why the grade resists oxidation and carburisation in service up to 1200 °C. Inconel 602 Winding Strip is typically used for high-temperature furnace components and radiant tubes up to 1200 °C.
As a reliable Alloy 602CA strip supplier, we slit every strip in-house from Inconel coil on our own lines. Material is supplied in the soft annealed condition in accordance with ASTM B168, width between 3 mm and 2000 mm, in the surface finish and edge you specify, with an EN 10204 Type 3.1 / 3.2 certification on request.
We provide ASTM B168 Inconel 602 CA strips in soft annealed condition, four surface finishes, and four edge options, precision-slit to width from ready Mumbai stock.
| Parameter | Details |
|---|---|
| Standard | ASTM B168 / ASME SB-168 |
| Thickness | 0.03 mm to 5 mm |
| Width | 3 mm to 2000 mm |
| Width Tolerance | ±0.1 mm |
| Condition | Soft / Annealed |
| Surface Finish | BA (Bright Annealed), 2B, Matte, Matte PVC |
| Supply Forms | Hot rolled and Cold rolled |
| Edge | Slit edge, Mill edge, Deburred edge, Round edge |
Yttrium sets this chemistry apart. At just 0.05 to 0.12%, it anchors the alumina scale that chromium and aluminium build, so the protective layer resists spalling during temperature swings.
| Element | Composition (%) |
|---|---|
| Chromium (Cr) | 24.0 to 26.0 |
| Nickel (Ni) | Balance |
| Iron (Fe) | 8.0 to 11.0 |
| Carbon (C) | 0.15 to 0.25 |
| Aluminium (Al) | 1.8 to 2.4 |
| Titanium (Ti) | 0.1 to 0.2 |
| Yttrium (Y) | 0.05 to 0.12 |
| Zirconium (Zr) | 0.01 to 0.10 |
| Silicon (Si) | 0.50 max |
| Manganese (Mn) | 0.15 max |
| Copper (Cu) | 0.10 max |
Annealed N06025 strip pairs a 680 MPa minimum tensile strength with 30% elongation, so it forms and bends without cracking. ASTM B168 applies the yield minimum from 0.508 mm upward; values for thinner strips stay indicative.
| Property | Value (Annealed) |
|---|---|
|
Tensile Strength, minimum
|
680 MPa (98 ksi) |
|
Yield Strength (0.2% offset), minimum
|
270 MPa (39 ksi) |
|
Elongation in 50 mm, minimum
|
30% |
Procurement teams ordering against European paperwork receive the same alloy we stock. The W.Nr 2.4633 strips we slit match every designation listed in the table below.
| Country / Standard | Designation |
|---|---|
| USA (UNS) | N06025 |
| Europe (EN) | NiCr25FeAlY |
| Germany (W.Nr) | 2.4633 |
These 4 industries specify most of the Nickel Alloy 602 CA strips we slit. Each one needs oxidation and carburisation resistance between 1000 °C and 1200 °C, a territory where standard heat-resistant alloys scale away.
Furnace builders form Inconel 602 strips into muffles, radiant tube sections, retort liners, and thermocouple protection sleeves. Wall sections retain their dimensional stability near 1200 °C because the adherent alumina scale refuses to spall under cyclic heating. Sourcing a precision-processed Inconel 602 Slitting Coil yields custom-width strips that feed forming lines directly, minimising scrap on long runs.
Hardening shops build belt links, baskets, trays, and fixtures from Alloy 602 CA strips. Carburising atmospheres load stainless carriers with carbon until they crack; this grade resists that pickup. Its creep strength above 1000 °C keeps fixture hardware dimensionally stable through years of repeated furnace cycles.
Process plants fit Inconel 602 strips into reformer internals, catalyst support parts, and formed components for ammonia, methanol, and hydrogen service. Metal dusting is the main threat in syngas streams. High chromium and aluminium levels block that attack, so strip-formed parts run far longer than conventional grades.
Power engineers specify Nickel Alloy 602 CA strips for high-temperature ducting, waste-heat recovery parts, and burner and exhaust hardware. The alloy withstands sulphur-bearing oxidising atmospheres as well as thermal shock. Components around combustion zones therefore survive hot, cyclic duty that defeats other low-cost strip material.
As an Inconel 602 strips exporter, we dispatch worldwide from our Mumbai and Taloja warehouses in wooden cases or pallet packing.
| Parameter | Details |
|---|---|
| Packaging | Wooden cases, pallet packing |
| Incoterms | FOB, CIF, CFR, EXW Mumbai |
| Dispatch Points | Mumbai and Taloja warehouses |
| Standard Lead Time | 4 to 5 days |
| Urgent Dispatch | 2 to 3 days |
| Payment Terms | Advance, credit, LC |
| Certification | EN 10204 Type 3.1 / 3.2 on request |
Inconel 602 strips price in India can vary widely by form and supplier, with standard listings often starting from about ₹3,500 per kg for specialty stock, while export prices are roughly US $44 to $50 per kg for 602CA material. Call or WhatsApp us for today's rate.
The UNS number for Inconel 602 CA strips is N06025. European mills list the same alloy as Werkstoff number 2.4633, under the EN name NiCr25FeAlY.
Inconel 602 strips are available from 0.03 mm to 5 mm thick and in any width between 3 mm and 2000 mm, slit to ±0.1 mm on our own lines.
The chemical composition of Inconel 602 CA strips covers 24.0 to 26.0% chromium, 8.0 to 11.0% iron, 1.8 to 2.4% aluminium, 0.15 to 0.25% carbon, and 0.05 to 0.12% yttrium, with nickel as the balance.
Inconel 602 strip is covered by ASTM B168 / ASME SB-168, the standard specification for nickel-chromium-iron alloy plate, sheet, and strip.
The maximum service temperature for Inconel 602 CA strips sits around 1200 °C in oxidising atmospheres. The exact limit is determined by the atmosphere and the mechanical loading in your application.
Finishes available for Inconel 602 strips include BA (Bright Annealed), 2B, Matte, and Matte PVC, with slit, mill, deburred, and round edge options.
You can source Inconel 602 strips in India from us at Riddhi Siddhi Impex. Our Mumbai warehouse holds N06025 strip ready for immediate dispatch. As a manufacturer, stockist, and exporter, we serve buyers across India and overseas, and quotes will be provided within 24 hours.
