We are Riddhi Siddhi Impex, a Mumbai-based Nickel 200 Foils manufacturer and supplier, established in 2002. We slit commercially pure nickel foil to ASTM B162 / ASME SB-162 and AMS 5553, from 0.03 mm to 0.08 mm. Our ISO 9001, 14001, and 45001-certified company keeps a ready stock and a monthly supply capacity of 400-500 tonnes and EN 10204 Type 3.1 / 3.2 mill test certificates on request.

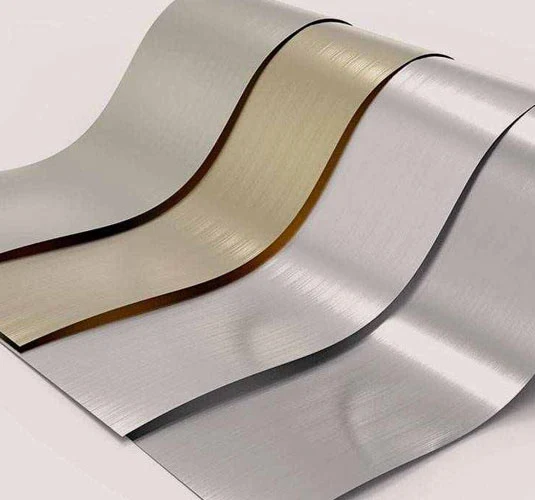

Nickel 200 foils are ultra-thin gauges of commercially pure wrought nickel, rolled down to 0.03 mm for work where sheet and strip run too heavy. The grade holds 99.0% minimum nickel plus cobalt, a density of 8.89 g/cm³, and a melting range of 1435-1446 °C. Conductivity and caustic resistance drive most foil orders. Because carbon may reach 0.15%, continuous service stays below 315 °C, past which graphitisation embrittles the metal. Cell makers spot-weld the foil into battery tabs; instrument builders cut it into electrodes and transducer laminations.
As a reliable Nickel 200 Foil supplier and manufacturer, every foil leaves our own slitting lines rather than a trading shelf. We supply annealed soft material to ASTM B162 or AMS 5553 for aerospace work, in any width between 3 mm and 2000 mm with the finish and edge your process needs.
We provide ASTM B162 Nickel 200 foils in annealed soft condition, slit in-house, with two surface finishes and edge options, dispatched from ready Mumbai stock.
| Parameter | Details |
|---|---|
| Standard | ASTM B162 / ASME SB-162, AMS 5553 |
| Thickness | 0.03 mm to 0.08 mm |
| Width | 3 mm to 2000 mm |
| Width Tolerance | ±0.1 mm |
| Condition | Annealed (Soft) |
| Supply Forms | Cold rolled |
| Surface Finish | BA (Bright Annealed), Matte |
| Edge | Slit edge, Deburred edge, Round edge |
ASTM B162 holds UNS N02200 foil to 99.0% minimum nickel plus cobalt, and the trace limits below protect its conductivity and alkali resistance.
| Element | Composition (%) |
|---|---|
| Nickel + Cobalt (Ni + Co) | 99.0 min |
| Carbon (C) | 0.15 max |
| Manganese (Mn) | 0.35 max |
| Iron (Fe) | 0.40 max |
| Sulphur (S) | 0.010 max |
| Silicon (Si) | 0.35 max |
| Copper (Cu) | 0.25 max |
Annealed CP nickel foil starts from a 380 MPa minimum tensile strength with 40% elongation, so it punches, folds, and draws without tearing. For gauges under 1.59 mm, treat the figures as indicative.
| Property | Value (Annealed) |
|---|---|
|
Tensile Strength, minimum
|
380 MPa (55 ksi) |
|
Yield Strength (0.2% offset), minimum
|
105 MPa (15 ksi) |
|
Elongation in 50 mm, minimum
|
40% |
Alloy 200 foil answers to a different designation in each market. Match your purchase specification against the table below.
| Country / Standard | Designation |
|---|---|
| USA (UNS) | N02200 |
| Europe (EN) | 2.4066 |
| Japan (JIS) | NW2200 |
| China (GB) | N6 |
| UK (BS) | NA 11 |
| Russia (GOST) | НП2 |
These 4 industries specify most of the Nickel 200 foils we slit. Conductivity, magnetostriction, and alkali resistance decide the purchase far more than mechanical strength does, and thin gauge suits each duty.

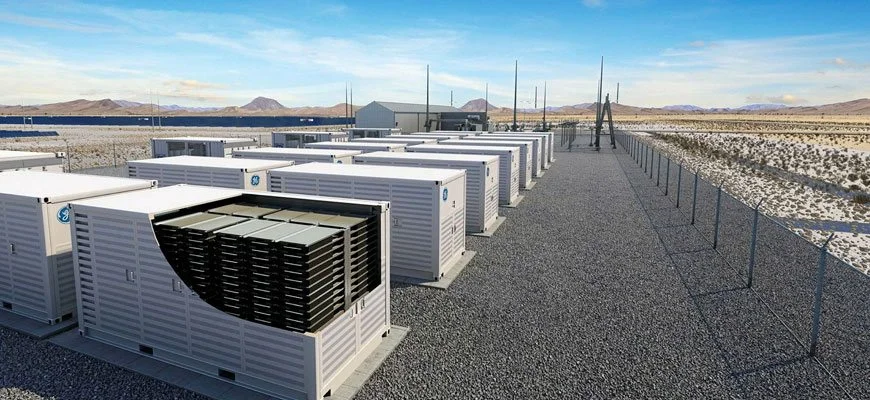

Battery pack assemblers order Nickel 200 foil for cell tabs, terminal connectors, and current collectors because pure nickel spot-welds cleanly to steel cell cans and resists electrolyte attack. A 0.05 mm tab carries current with little resistive heating. We slit tab stock down to 3 mm wide, ready for automated welding lines.
Nickel 200 foil is used as an electrode material where 99.0% purity keeps the cell chemistry clean, and as lead/contact foil in plating and electrolysis equipment. Transducer builders exploit magnetostriction instead. Stacked into ultrasonic transducers with a coil wound around them, thin nickel laminations convert a magnetic field into mechanical movement. The thin gauge matters because it breaks up eddy currents, which would otherwise dominate the losses at ultrasonic frequency.
Caustic soda producers specify commercially pure nickel foil for gasket facings, seal wraps, and diaphragm protection in sodium hydroxide service. Stainless steel stress-cracks in hot alkali; this grade does not. Held below 315 °C, the foil keeps its ductility through years of continuous exposure to concentrated caustic streams.
Aerospace and instrumentation buyers take Nickel 200 foil to AMS 5553 for sensing elements, sealing foils, and calibration parts where chemical stability outweighs strength. Traceability travels with each order. Type 3.1 or 3.2 certification accompanies every slit coil on request, matched line by line to the aerospace specification.
Foil coils travel protected; they are packed in wooden cases or pallets and leave from Mumbai and Taloja for sea freight.
| Parameter | Details |
|---|---|
| Packaging | Wooden cases, pallet packing |
| Incoterms | FOB, CIF, CFR, EXW Mumbai |
| Dispatch Points | Mumbai and Taloja warehouses |
| Standard Lead Time | 4 to 5 days |
| Urgent Dispatch | 2 to 3 days |
| Payment Terms | Advance, credit, LC |
| Certification | EN 10204 Type 3.1 / 3.2 on request |
Nickel 200 Foils price in India is approximately ₹2,500-₹5,000 per kg, or $20-$35 per kg for export buyers. LME nickel movement, thickness, width, finish, and order volume shift the figure daily, and bulk orders earn volume discounts. WhatsApp or call our team for today's rate.
We slit Nickel 200 foils from 0.03 mm to 0.08 mm thick, in widths between 3 mm and 2000 mm, with ±0.1 mm tolerance on width.
Nickel 200 foil differs from Nickel 201 foil in carbon content: 0.15% maximum against 0.02%, so service above 315 °C requires the 201 grade.
Yes. Our slitting lines cut CP nickel foil to any width from 3 mm to 2000 mm against your drawing, with deburred or round edges where a sharp slit edge would mark adjacent parts.
ASTM B162 and ASME SB-162 cover Nickel 200 foil, and aerospace purchase orders add AMS 5553.
Nickel 200 foil orders ship from ready stock in 4 to 5 days, while urgent dispatches leave within 2 to 3 days. Export shipments move worldwide on FOB, CIF, CFR, and EXW terms through the Mumbai port.
You can buy Nickel 200 foils in India from us at Riddhi Siddhi Impex. Ready UNS N02200 foil stock sits in our Mumbai warehouse, and as a manufacturer, supplier, and exporter, we serve buyers across India and abroad. Call or WhatsApp us, and your quote will arrive within 24 hours.
