We at Riddhi Siddhi Impex manufacture and supply Hastelloy C22 strips in accordance with ASTM B575 and ASME SB-575. Established in 2002, our Mumbai firm slits Alloy C-22 (UNS N06022) strip in-house from 0.03 mm to 5 mm thick, backed by a monthly supply capacity of 400-500 tonnes. Our company is ISO 9001, 14001, and 45001-certified and provides EN 10204 Type 3.1 or 3.2 certificates with every order on request.
Hastelloy C22 strip is a nickel-chromium-molybdenum-tungsten alloy, cold rolled and slit to close tolerances. Chromium at 20 to 22.5% protects the strip in oxidising media, while molybdenum at 12.5 to 14.5% and tungsten at 2.5 to 3.5% block pitting and crevice corrosion in reducing acids. Few grades cover both sides of the corrosion spectrum this evenly. Carbon is held to 0.015% max, so welded parts keep their resistance without post-weld treatment. These Hastelloy Strips are used in the pharmaceutical and chemical processing industries.

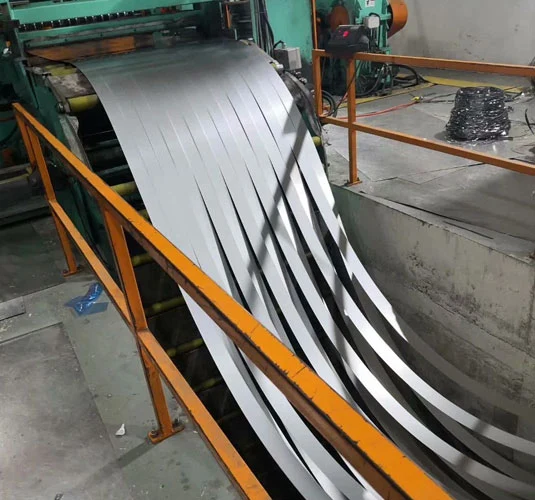

We process each source coil on our own slitting lines, with widths from 3 mm to 2000 mm at ±0.1 mm. Strip ships in the annealed condition with full traceability on every batch.
We supply Alloy C-22 strip to ASTM B575 in the thicknesses, finishes, and edge conditions listed below.
| Parameter | Details |
|---|---|
| Standard | ASTM B575 / ASME SB-575 |
| Thickness | 0.03 mm to 5 mm |
| Width | 3 mm to 2000 mm |
| Width Tolerance | ±0.1 mm |
| Condition | Annealed (standard mill) |
| Surface Finish | BA (Bright Annealed), 2B, Matte, Skin Pass |
| Supply Form | Hot Rolled and Cold Rolled |
| Edge | Slit, Mill, Deburred, Round |
Chromium at 20 to 22.5% is the defining element of UNS N06022 strip, the highest in its alloy family, working with 12.5 to 14.5% molybdenum. The full ASTM B575 limits follow.
| Element | Composition (%) |
|---|---|
| Nickel (Ni) | Balance (approx. 56) |
| Chromium (Cr) | 20.0 to 22.5 |
| Molybdenum (Mo) | 12.5 to 14.5 |
| Iron (Fe) | 2.0 to 6.0 |
| Tungsten (W) | 2.5 to 3.5 |
| Cobalt (Co) | 2.5 max |
| Manganese (Mn) | 0.50 max |
| Vanadium (V) | 0.35 max |
| Carbon (C) | 0.015 max |
| Silicon (Si) | 0.08 max |
| Phosphorus (P) | 0.02 max |
| Sulphur (S) | 0.02 max |
Annealed Hastelloy C-22 strip to ASTM B575 carries a minimum tensile strength of 690 MPa, a yield of 310 MPa, and 45% elongation, generous ductility for forming and deep drawing. C22 isn't a temper-graded alloy, so we stock strip annealed; cold-rolled material with higher tensile levels is produced against specific orders and certified individually.
| Property | Value (Annealed) |
|---|---|
|
Tensile Strength, minimum
|
690 MPa (100 ksi) |
|
Yield Strength (0.2% offset), minimum
|
310 MPa (45 ksi) |
|
Elongation in 50 mm, minimum
|
45% |
Buyers who specify 2.4602 strip or N06022 strip under a national standard can cross-reference the designations below.
| Country / Standard | Designation |
|---|---|
| USA (UNS) | N06022 |
| Europe (EN) | NiCr21Mo14W |
| Germany (W.Nr) | 2.4602 |
| Japan (JIS) | NW 6022 |
| China (GB) | NS3308 |
These 4 industries consistently use the Nickel Alloy C22 strip we dispatch, drawn to its balanced resistance to oxidising and reducing corrosives.
Alloy C22 strip is specified in gaskets, bellows, and column internals in plants running mixed acids. Because chromium covers the oxidising side and molybdenum the reducing side, one grade copes with process streams that change composition between batches.

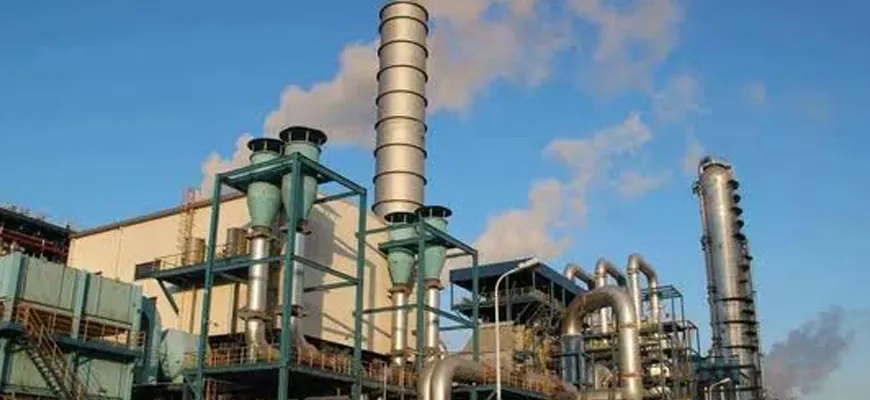

Scrubber liners, dampers, and expansion joints in FGD units rely on the Hastelloy C22 winding strip. Hot condensate in these systems pairs sulphuric acid with chlorides, an aggressive oxidising mix that the grade handles for the long service intervals power plants demand.
Hygienic diaphragms, seals, and heat exchanger parts use Alloy 22 strip. It tolerates repeated washdown with chlorinated and acidic cleaning agents, keeping surfaces smooth and product streams free of metallic pick-up.
Reprocessing plants specify UNS N06022 strip for components exposed to hot nitric acid and halide mixtures. Stability in such media is the reason the grade features in long-term nuclear waste containment programmes.
We dispatch Hastelloy C-22 strips from our Mumbai and Taloja warehouses in wooden cases or on pallets, ready for export.
| Parameter | Details |
|---|---|
| Packaging | Wooden cases, pallet packing |
| Incoterms | FOB, CIF, CFR, EXW Mumbai |
| Dispatch Points | Mumbai, Taloja |
| Standard Lead Time | 4 to 5 days |
| Urgent Dispatch | 2 to 3 days |
| Payment Terms | Advance, credit, LC |
| Certification | EN 10204 Type 3.1 / 3.2 on request |
Indicative pricing for Hastelloy C22 slitting coil runs from Rs 2700 to Rs 3900 per kg for Indian buyers and $32-$46 per kg for export. Rates track nickel and molybdenum benchmarks, and thickness, width, finish, and quantity all move the figure. Call or WhatsApp us with your requirement for a firm quote.
Hastelloy C22 strips are used for gaskets, bellows, diaphragms, and scrubber components across the chemical, flue gas desulphurisation, pharmaceutical, and nuclear sectors, wherever oxidising and reducing corrosives attack together.
The main difference between Hastelloy C22 and C276 strips is chromium content. C22 carries 20 to 22.5% against 14.5 to 16.5% in C276, so it performs better in oxidising media. C276 holds more molybdenum and suits strongly reducing acids. For mixed or changing conditions, C22 is the more versatile choice.
Hastelloy C22 strips are available from 0.03 mm to 5 mm thick and 3 mm to 2000 mm wide, with a width slit to ±0.1 mm.
ASTM B575 and its ASME equivalent SB-575 cover Hastelloy C22 strip, sheet, and plate.
Yes, Hastelloy C22 strips weld readily by TIG and MIG. The 0.015% carbon ceiling limits grain-boundary precipitation, so fabrications enter service as-welded without solution annealing.
You can source from a reliable Hastelloy C22 strip supplier like Riddhi Siddhi Impex. Send your size and grade on call or WhatsApp and we'll provide a quote within 24 hours.
