We are Riddhi Siddhi Impex, a Mumbai-based supplier and stockist of Nickel 200 Sheets & Plates, established in 2002. We hold commercially pure nickel sheet from 3.8 mm and plate in heavier gauges to ASTM B162 / ASME SB-162, sourced from reputed primary mills and exported to 60+ countries. Our ISO 9001, 14001, and 45001-certified company holds ready stock, with EN 10204 Type 3.1 / 3.2 mill test certificates on request.

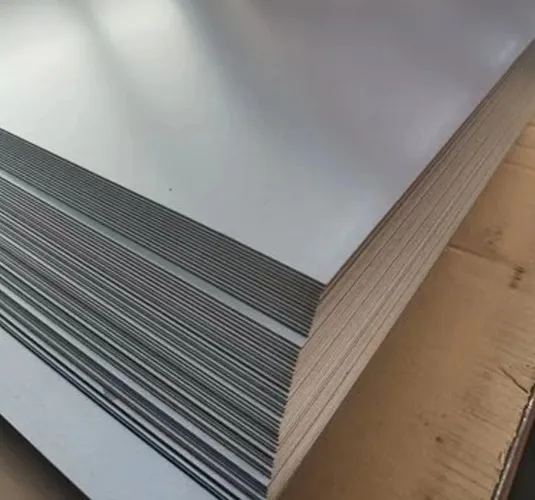

Nickel 200 sheets and plates are flat-rolled forms of commercially pure wrought nickel, a grade holding 99.0% minimum nickel plus cobalt. UNS N02200 carries a density of 8.89 g/cm³ and melts between 1435 and 1446 °C. Caustic alkalis cause almost no damage, and reducing acids have some additional effect, though the 0.15% maximum carbon caps continuous service near 315 °C, where graphitisation embrittles the grain boundaries. This grade is widely specified in chemical processing equipment and pharmaceuticals.
As a reliable Nickel 200 Sheet supplier, we stock this grade as cold-rolled sheet and hot-rolled plate within our wider Nickel Sheets & Plates range, in widths up to 2000 mm. We stock these mill forms rather than produce them. Consignments ship annealed to ASTM B162, and our in-house lines slit sheet to your working width at ±0.1 mm.
We provide UNS N02200 sheet and plate in annealed mill condition, with surface finishes and various supply forms.
| Parameter | Details |
|---|---|
| Standard | ASTM B162 / ASME SB-162 |
| Thickness (Sheets, CR) | 3.8 mm to 10 mm |
| Thickness (Plates, HR) | 10 mm and above, subject to mill availability |
| Width | 1000 mm, 1219 mm, 1500 mm, 2000 mm |
| Width Tolerance (slit) | ±0.1 mm |
| Condition | Annealed (standard mill condition) |
| Supply Forms | Hot-rolled plates, Cold-rolled sheets |
| Surface Finish | 2B, BA (Bright Annealed) |
ASTM B162 sets a 99.0% floor for nickel plus cobalt in Alloy 200 plate, and six trace elements share the small remainder.
| Element | Composition (%) |
|---|---|
| Nickel + Cobalt (Ni + Co) | 99.0 min |
| Carbon (C) | 0.15 max |
| Manganese (Mn) | 0.35 max |
| Iron (Fe) | 0.40 max |
| Sulphur (S) | 0.010 max |
| Silicon (Si) | 0.35 max |
| Copper (Cu) | 0.25 max |
Annealed Nickel 200 sheet pairs a 380 MPa minimum tensile strength with 40% elongation, so shells roll, heads spin, and linings form without cracking. Every figure below applies from 3.8 mm up.
| Property | Value (Annealed) |
|---|---|
|
Tensile Strength, minimum
|
380 MPa (55 ksi) |
|
Yield Strength (0.2% offset), minimum
|
105 MPa (15 ksi) |
|
Elongation in 50 mm, minimum
|
40% |
Buyers ordering against a European, Japanese, or Russian specification can match the W.Nr 2.4060 sheet and plate we stock to each regional designation listed below.
| Country / Standard | Designation |
|---|---|
| USA (UNS) | N02200 |
| Europe (EN) | 2.4066 |
| Germany (W.Nr) | 2.4060 |
| Japan (JIS) | NW2200 |
| China (GB) | N6 |
| UK (BS) | NA 11 |
| Russia (GOST) | НП2 |
These 4 industries specify most of the Nickel 200 sheets and plates we supply, choosing the grade for alkali resistance, product purity, or conductivity rather than raw strength.
Caustic soda plants roll Nickel 200 plate into evaporator shells, boiling pan bodies, and concentration vessel walls. Hot sodium hydroxide stress-cracks stainless steel; commercially pure nickel serves across the full concentration range so long as the metal temperature stays below 315 °C. Storage tanks welded from heavier plate handle the same duty.
Reactor linings, fabricated tanks, and drums for alkaline chemical transport take Nickel 200 sheet because the metal keeps process streams uncontaminated. A vessel lined with a 3 mm sheet often outlasts the carbon steel shell behind it, and distilled water circuits use the same material where iron pickup would spoil the product.
Plating shops cut anode plates, cell tank linings, and electrode blanks from Alloy 200 sheet. Purity at 99.0% minimum keeps coatings free of foreign metal, and high electrical conductivity trims cell losses. Electroforming lines run a busbar plate from the same stock.
Food and pharmaceutical fabricators line mixing vessels and build product-contact panels from commercially pure nickel sheet. The metal doesn't shed ions into the batch, and hot alkaline clean-in-place cycles pass without etching the surface. Hygienic welded seams also polish cleanly.
Sheet and plate orders travel flat, strapped to pallets or cased in wood, from our two dispatch points.
| Parameter | Details |
|---|---|
| Packaging | Wooden cases, pallet packing |
| Incoterms | FOB, CIF, CFR, EXW Mumbai |
| Dispatch Points | Mumbai and Taloja warehouses |
| Standard Lead Time | 4 to 5 days |
| Urgent Dispatch | 2 to 3 days |
| Payment Terms | Advance, credit, LC |
| Certification | EN 10204 Type 3.1 / 3.2 on request |
Nickel 200 Sheets & Plates price in India runs near ₹1,800 to ₹2,200 per kg, about $21 to $26 for export buyers. LME nickel movement sets the base rate, while thickness, width, finish, and order volume settle the final figure. The band is indicative, so call or WhatsApp our team for a firm quote.
We supply Nickel 200 Alloy sheets from 3.8 mm to 6 mm thick and plates from 6 mm upward, in widths up to 2000 mm. Heavier plate gauges depend on mill availability, so confirm before ordering.
Yes, Nickel 200 sheets and plates can be welded by GTAW (TIG), GMAW (MIG), and shielded metal arc processes; only oxyacetylene welding is ruled out. Ask us about suitable filler metals.
Nickel 200 sheets and plates are covered by ASTM B162 and its ASME equivalent SB-162, which fix the chemistry, mechanical minimums, and tolerances for UNS N02200 flat products.
Yes, we export Nickel 200 sheets and plates to buyers in 60+ countries, shipping from Mumbai port on FOB, CIF, CFR, or EXW terms with EN 10204 Type 3.1 / 3.2 certificates on request.
You can source Nickel 200 sheets and plates in India from us at Riddhi Siddhi Impex. Ready UNS N02200 stock is kept in our Mumbai warehouse for immediate dispatch, and as a supplier, stockist, and exporter, we serve fabricators across India and abroad. Call or WhatsApp us and expect your quote within 24 hours.
