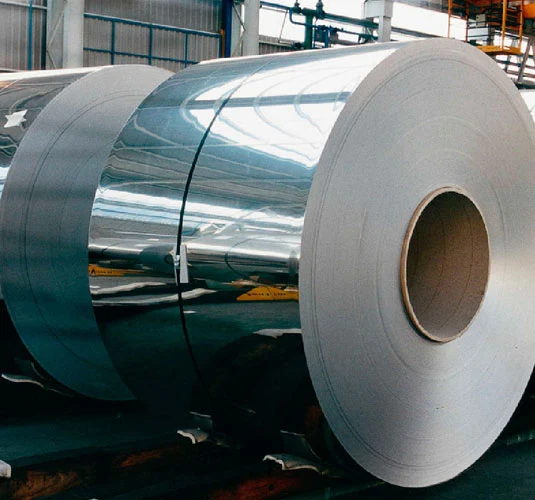

We are Riddhi Siddhi Impex, a Mumbai-based Incoloy 800 Foils manufacturer, supplier, and exporter, established in 2002. We slit nickel-iron-chromium Alloy 800 foil to ASTM B409 / ASME SB-409 from 0.03 mm to 0.08 mm. Our ISO 9001, 14001, and 45001-certified facility carries ready stock, has a monthly supply capacity of 400-500 tonnes, and has EN 10204 Type 3.1 / 3.2 certificates available on request.
Incoloy 800 foil is a thin, cold-rolled nickel-iron-chromium alloy holding 30 to 35% nickel, 19 to 23% chromium, and a minimum 39.5% iron, with small aluminium and titanium additions. That balance keeps an austenitic structure through thermal cycling and resists oxidation, carburisation, and high-temperature corrosion. The grade resists oxidation up to roughly 1093 °C and carries continuous load-bearing service to about 815 °C, serving in furnace parts, heating elements, and process equipment. These Incoloy Foils are specified in food processing, heat exchangers, and more.
We process every Alloy 800 foil in-house on our own slitting lines. Material leaves in annealed soft condition to ASTM B409, slit to any width from 3 mm to 2000 mm. Buyers can specify BA, 2B, or Matte surfaces and slit, deburred, or round edges.
We provide ASTM B409 Incoloy 800 foil in annealed condition, cold rolled and precision slit, with three surface finishes and three edge options, in coil.
| Parameter | Details |
|---|---|
| Standard | ASTM B409 / ASME SB-409 |
| Thickness | 0.03 mm to 0.08 mm |
| Width | 3 mm to 2000 mm |
| Width Tolerance | ±0.1 mm |
| Condition | Annealed (Soft) |
| Surface Finish | BA (Bright Annealed), 2B, Matte |
| Edge | Slit edge, Deburred edge, Round edge |
Nickel and iron define this grade. UNS N08800 foil balances 30 to 35% nickel against a 39.5% minimum iron, while chromium at 19 to 23% forms the oxide layer that resists scaling. Controlled aluminium and titanium keep the alloy stable at temperature. The full ASTM B409 composition appears below.
| Element | Composition (%) |
|---|---|
| Nickel (Ni) | 30.0 to 35.0 |
| Chromium (Cr) | 19.0 to 23.0 |
| Iron (Fe) | 39.5 min |
| Carbon (C) | 0.10 max |
| Manganese (Mn) | 1.50 max |
| Silicon (Si) | 1.00 max |
| Copper (Cu) | 0.75 max |
| Sulphur (S) | 0.015 max |
| Aluminium (Al) | 0.15 to 0.60 |
| Titanium (Ti) | 0.15 to 0.60 |
Annealed Alloy 800 foil pairs a 520 MPa minimum tensile strength with 30% elongation, so it forms and draws without cracking. Under ASTM B409, the yield and elongation minimums apply to material 0.508 mm and thicker, so figures for thinner gauges are indicative. Foils leave in soft annealed condition only, so no temper ladder applies.
| Property | Value |
|---|---|
|
Tensile Strength, minimum
|
520 MPa (75 ksi) |
|
Yield Strength (0.2% offset), minimum
|
205 MPa (30 ksi) |
|
Elongation in 50 mm, minimum
|
30% |
|
Density
|
7.94 g/cm³ |
International buyers can cross-reference UNS N08800 foil against their regional standard below. The 1.4876 foil we stock matches every designation listed.
| Country / Standard | Designation |
|---|---|
| USA (UNS) | N08800 |
| Europe (EN) | X10NiCrAlTi32-20 |
| Germany (W.Nr) | 1.4876 |
| Japan (JIS) | NCF 800 |
| China (GB) | NS1101 |
These 4 industries use most of the Incoloy 800 foils we slit. In each case, the buyer selects the grade for oxidation resistance, carburisation resistance, or stability at high temperature.
Chemical plants fit Alloy 800 foil into reactor internals, gaskets, shims, and spacers exposed to hot, oxidising streams. The nickel-iron-chromium matrix resists stress-corrosion cracking and oxidising acids where standard stainless steel degrades, holding its strength through repeated process cycles.
Power and heating equipment builders specify Incoloy 800 foil for heating element sheathing, thermocouple protection, and furnace components. The alloy carries load-bearing service to around 815 °C and resists scaling well above it, keeping its austenitic structure, so sheathed elements survive long runs.
Thin-gauge Alloy 800 foil suits heat exchanger gaskets, expansion joints, and bellows in thermal cycling duty. The grade resists oxidation and carburisation and does not embrittle under repeated heating and cooling, so sealing parts hold their clearance over long service.
Food processing lines use Incoloy 800 foil in hygienic equipment and heating hardware handling organic acids and process solutions. The alloy resists corrosion from acidic media and cleaning cycles, while custom-slit widths let fabricators form components that fit tight layouts.
Export orders leave from our Mumbai and Taloja, packed in wooden cases or on pallets for sea freight.
| Parameter | Details |
|---|---|
| Packaging | Wooden cases, pallet packing |
| Incoterms | FOB, CIF, CFR, EXW Mumbai |
| Dispatch Points | Mumbai and Taloja warehouses |
| Standard Lead Time | 4 to 5 days |
| Urgent Dispatch | 2 to 3 days |
| Payment Terms | Advance, credit, LC |
| Certification | EN 10204 Type 3.1 / 3.2 on request |
Incoloy 800 Foils price in India is around ₹1,200 to ₹ 2,000 per kg, and for international buyers it generally runs $12 to $20 per kg. Incoloy Foil gauge, finish, width, and quantity all move the figure, and the grade tracks global nickel rates. This range is indicative, so call or WhatsApp us for today's rate.
We slit Incoloy 800 foils from 0.03 mm to 0.08 mm thick and to any width between 3 mm and 2000 mm, with width held to ±0.1 mm. Gauge, width, and finish follow your specification.
Incoloy 800 foils contain 30.0 to 35.0% nickel, 19.0 to 23.0% chromium, a minimum 39.5% iron, and aluminium and titanium at 0.15 to 0.60% each, with carbon held to 0.10% maximum per ASTM B409.
The difference is that Incoloy 800 (UNS N08800) holds carbon to 0.10% maximum and Incoloy 800H (UNS N08810) uses a controlled 0.05 to 0.10% carbon range and a coarser grain size for higher creep strength. Choose 800H foils for prolonged service above 600 °C.
Incoloy 800 foils suit continuous service up to about 816 °C (1500 °F) and resist oxidation to around 1093 °C. For load-bearing service above ~600 °C, Incoloy 800H or 800HT foils offer better creep and rupture strength.
Standard dispatch runs 4 to 5 days from ready stock, and urgent orders can leave in 2 to 3 days. We hold Incoloy 800 foil inventory to keep delivery quick.
You can source Incoloy 800 foils in India from us at Riddhi Siddhi Impex. Our Mumbai warehouse holds Alloy 800 foil on the shelf for immediate dispatch. As a trusted Incoloy 800 foil manufacturer, stockist, and exporter, we serve buyers across India and overseas. Phone or WhatsApp us for a quote within 24 hours.
