We are Riddhi Siddhi Impex, a Mumbai-based supplier, stockist, and exporter of Incoloy 800 Sheets & Plates, established in 2002. We stock mill-sourced ASTM B409 Incoloy 800 sheets and plates, offering cold-rolled options from 3.8mm and heavy-gauge hot-rolled plates. As an ISO 9001, ISO 14001, and ISO 45001-certified supplier with a supply capacity of 400-500 tonnes monthly, we deliver worldwide. All dispatches include EN 10204 3.1/3.2 test certificates on request to guarantee complete traceability and premium quality.

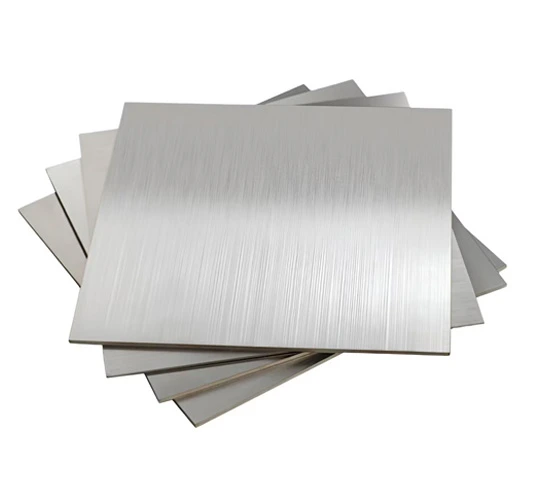

Incoloy 800 sheets and plates are nickel-iron-chromium alloy flat products built for extended periods at elevated temperatures. Nickel at 30 to 35% holds an austenitic structure and resists chloride stress corrosion cracking. Chromium at 19 to 23% forms a tight oxide film against scaling, while small aluminium and titanium additions keep the structure stable at temperature. Because iron makes up much of the balance, these incoloy sheets and plates generally cost less than fully nickel-base alloys while retaining excellent high-temperature performance. It is commonly used in industrial furnaces, chemical processing equipment, and steam generator tubing for its high-temperature strength and corrosion resistance.
As a reliable Incoloy 800 sheet and plate supplier, we hold Alloy 800 stock in widths up to 2000 mm (post-slitting). Material ships annealed in 2B or BA finish.
We supply ASTM B409 Incoloy 800 sheet and UNS N08800 plate in annealed condition, with two surface finishes and standard mill widths.
| Parameter | Details |
|---|---|
| Standard | ASTM B409 / ASME SB-409 |
| General Requirements | ASTM B906 |
| Thickness (Sheets, CR) | 3.8 mm to 10 mm |
| Thickness (Plates, HR) | 10 mm and above |
| Width | 1000 mm, 1219 mm, 1500 mm, 2000 mm |
| Width Tolerance | ±0.1 mm |
| Condition | Annealed (standard mill condition) |
| Surface Finish | 2B, BA (Bright Annealed) |
| Form | Hot-Rolled Plates, Cold-Rolled Sheets |
A 39.5% minimum iron base carries 30 to 35% nickel and 19 to 23% chromium in Alloy 800 plate. Aluminium and titanium, each at 0.15 to 0.60%, stabilise the alloy at temperature. The ASTM B409 limits appear below.
| Element | Composition (%) |
|---|---|
| Nickel (Ni) | 30.0 to 35.0 |
| Chromium (Cr) | 19.0 to 23.0 |
| Iron (Fe) | 39.5 min (balance) |
| Carbon (C) | 0.10 max |
| Manganese (Mn) | 1.50 max |
| Silicon (Si) | 1.00 max |
| Copper (Cu) | 0.75 max |
| Aluminium (Al) | 0.15 to 0.60 |
| Titanium (Ti) | 0.15 to 0.60 |
| Sulphur (S) | 0.015 max |
Annealed UNS N08800 sheet and plate meet a 520 MPa minimum tensile strength with 30% elongation. ASTM B409 waives yield requirements below 0.51 mm; our sheets start at 3.8 mm, so the figures hold across our range.
| Property | Value |
|---|---|
|
Tensile Strength, minimum
|
520 MPa (75 ksi) |
|
Yield Strength (0.2% offset), minimum
|
205 MPa (30 ksi) |
|
Elongation in 50 mm, minimum
|
30% |
|
Melting Range (typical)
|
1357 to 1385 °C |
International buyers can cross-reference UNS N08800, occasionally listed as IN800, against their regional standard in the table below. Our stock matches every designation shown.
| Country / Standard | Designation |
|---|---|
| USA (UNS) | N08800 |
| Europe (EN) | X10NiCrAlTi32-20 |
| Germany (W.Nr.) | 1.4876 |
| Japan (JIS) | NCF 800 |
| China (GB) | GH32 |
| AFNOR / NF | Z8NC32.21 |
These 4 industries specify most of the Incoloy 800 Sheets and Plates we supply, each picking the grade for oxidation resistance, carburisation resistance, or strength at heat.
Process plants fabricate Incoloy 800 plates into reformer components, pyrolysis equipment, and vessel linings that carry hot hydrocarbon streams. The chromium oxide film blocks oxidation, and the high nickel base slows carburisation, so furnace internals keep their wall thickness in service.
Power stations specify Alloy 800 plate for superheater supports, steam piping components, and heat-recovery casings under sustained heat. The austenitic structure carries creep load through years of thermal cycling and stands up to oxidising flue gas without losing section.
Furnace builders form Nickel Alloy 800 sheet into muffles, retorts, radiant tube assemblies, and carburising fixtures. The grade serves continuously to around 816 °C, so baskets and trays survive repeated quench cycles that warp lower alloys early.
Fabricators machine tubesheets, baffles, and channel covers from UNS N08800 plate for high-temperature exchanger duty. Balanced chemistry lets one material face oxidising and mildly reducing atmospheres, and titanium stabilisation keeps welded seams sound in hot service.
Orders leave from our Mumbai and Taloja warehouses in wooden cases or on pallets.
| Parameter | Details |
|---|---|
| Packaging | Wooden cases, pallet packing |
| Incoterms | FOB, CIF, CFR, EXW Mumbai |
| Dispatch Points | Mumbai and Taloja warehouses |
| Standard Lead Time | 4 to 5 days |
| Urgent Dispatch | 2 to 3 days |
| Payment Terms | Advance, credit, LC |
| Certification | EN 10204 Type 3.1 / 3.2 on request |
Incoloy 800 sheets and plates in India are typically around ₹1,100-₹1,800 per kg, while export buyers generally pay about $12-$19 per kg for standard material. The figure tracks global nickel rates; thickness, width, finish, and order volume all move it. This range is indicative, so call or WhatsApp us for today's rate and volume discounts.
Incoloy 800 Sheets and Plates are covered by ASTM B409 and its ASME equivalent SB-409. Both set the chemistry, mechanical minimums, and tolerances for nickel-iron-chromium alloy plate, sheet, and strip in UNS N08800.
The difference between Incoloy 800 and 800H plates lies in carbon control. Incoloy 800 (UNS N08800) holds carbon to 0.10% maximum, while 800H (UNS N08810) keeps carbon between 0.05 and 0.10% with a controlled grain size for higher creep-rupture strength above 593 °C. We supply the base grade.
We stock Incoloy 800 sheets from 3.8 mm to 10 mm and plates in heavier gauges in widths up to 2000 mm (post-slitting). Custom sizes are available, subject to mill availability.
Yes, Incoloy 800 sheets can be slit to custom widths on our in-house lines, with widths from 3 mm to 2000 mm (after slitting) at ±0.1 mm tolerance. Send us your required width for a quotation.
Incoloy 800 plates are used in chemical and petrochemical processing, power generation, heat treatment equipment, and heat exchanger fabrication, wherever oxidation resistance and high-temperature strength decide the material.
You can source Incoloy 800 Sheets and Plates in India from us at Riddhi Siddhi Impex. Our Mumbai warehouse holds Alloy 800 sheet and plate stock for immediate dispatch. As a supplier, stockist, and exporter, we serve buyers across India and overseas, and quotes will be provided within 24 hours.
